Pharma-line Point of Use

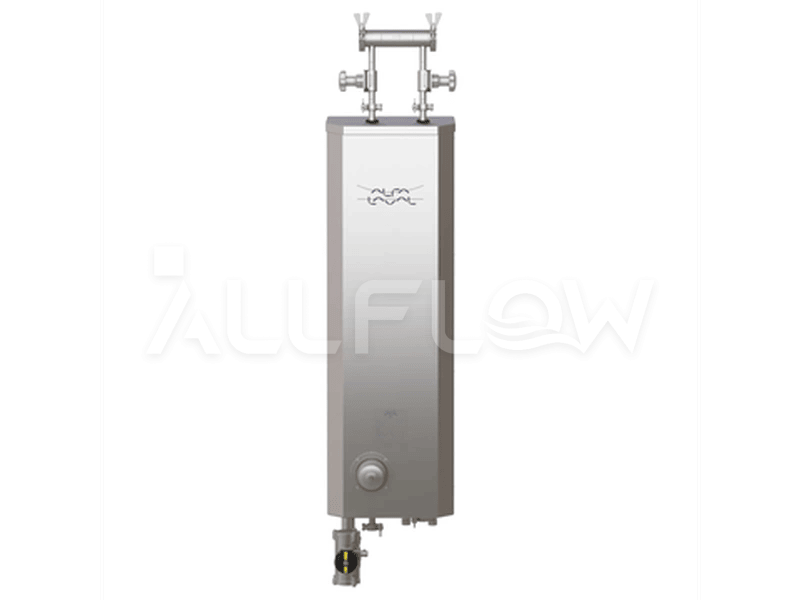

Pharma-line Point of Use

Product Description

A compact module developed for point of use cooling in pharmaceutical water systems. The Pharma-line Point of Use module for the pharmaceutical industry is designed as a subloop in hot water systems keeping it sanitized when not in use.


Efficient point of use cooling

  • Easy installation: The Pharma-line Point of Use is built as a plug-and-play module
  • Hygienic design: Reynolds number >4000 maintained in stand-by with main-line velocity >1 m/s. No internal welds, and fully drainable with no dead legs
  • Full supply chain transparency with Alfa Laval Q-doc documentation
  • Fast response: Cold purified water is available within seconds
  • Minimized waste of purified water due to the low hold-up volume and fast response

The Pharma-line Point of Use cooler meets the stringent hygienic standard imposed by both control authorities and industry. With a unique design that gives high shear force and turbulence, it minimizes risk of bio-film build-up and ensures an efficient heat transfer. All product wetted parts in the Pharma-line Point of Use cooler are electropolished and the tubes as seamless. For quick and easy installation, the Pharma-line Point of Use cooler is supplied as a complete insulated module with a pitot tube arrangement and either manual or automatic valves. Installed in a pharmaceutical water system, the Pharma-line Point of Use module can be regarded as a sub-loop of the main loop.
