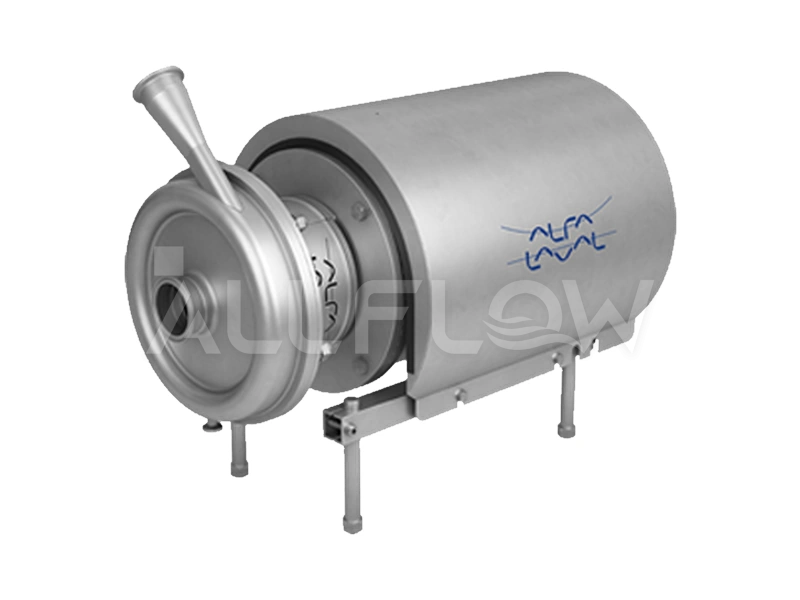

LKH UltraPure

LKH UltraPure

Product Description

Alfa LKH UltraPure pharmaceutical pumps (certified to EHEDG) use a combination of optimised inlets and advanced impeller design to give unobstructed product flow, very low NPSH requirements and excellent hydraulic efficiency to keep your process running smoothly. They are designed for CIP and available in capacities of up to 500 m3/h and pressures of up to 190 m (19 bar).

Highly efficient and economical centrifugal pump that meets the requirements of hygienic processes

  • Low contamination risk – hygienic design with pharma-grade SiC+ seals, pre-defined compression elastomers and low-delta ferrite impeller
  • Maximized uptime and reduced maintenance costs – robust mechanical design and ease of maintenance with modular front-loading seals
  • Increased yield – comes with full material traceability and USP Class VI elastomers to reduce risk of process contamination from extractables
  • Energy and cleaning efficient – precise hydraulic design energy costs and CO2/waste chemical emissions to boost yields and process sustainability
  • Smooth qualification, validation and process control – material traceability, and pump supplied with Alfa Laval’s Q-Doc package in line with GDP

The vane design of the semi-open impeller ensures a low Net Positive Suction Head required and prevents the effects of cavitation. The impeller balance holes help circulate the process fluid in the shaft seal area reducing axial force and wear on the seal and motor bearings. The high flow around the pump, especially behind the impeller near the shaft seal, makes cleaning easy and enhances the lubrication/ cooling of the seal to prolong life.
