MG12/MG14

The MG12/MG14 is a high pressure homogeniser that supports pressures up to 600 bar and capacities up to 8500/11000 liters per hour.

3 plungers
High-pressure pump or homogeniser
Aseptic available
Pump valves: Ball or Spherical

Product Description

Cylinder block

A single piece precision machined block made out of a high tensile, corrosion resistant, forged stainless steel.

Built with front and upper caps giving easy access for inspection and maintenance. This standard design has spring loaded plunger packings with integrated water cooling. The fully sanitairy execution utilises a minimum of parts and seals and is suitable for C.I.P

Besides the standard spherical and ball type pump valves, always with field replaceable pump valve seats there are many other options available to meet specific product or process requirements

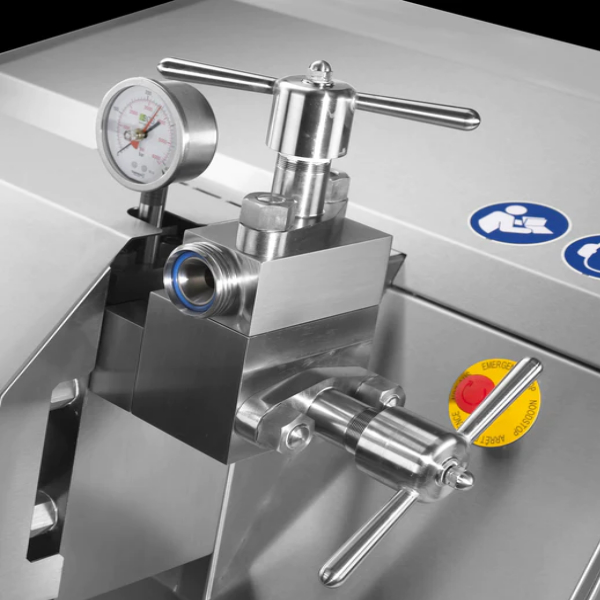

Homogenising Valve

Available in a variety of designs and materials, single or two stage, with the standard flat valve and seat in Rexalloy®™ but also with a serrated surface (LW type) or Knife edge for cell rupture applications.

The different valve designs are available in the standard Rexalloy®™ material, Tungsten Carbide and Ceramic

Drive end

The one piece high strength cast iron design with integrated gear reduction provides a quiet running machine with low eccentric shaft speeds. The drive has a dry sump with a separate lubrication oil tank and does not require any cooling water. The machine is standard executed with a frequency converter for capacity variations of between 30-100% under full load. The electric motor is pre-wired in combination with an integral frequency converter.

This unique concept offers unbeatable reliability, requires a minimum of maintenance and down time.
