MG3/MG4

MG3/MG4

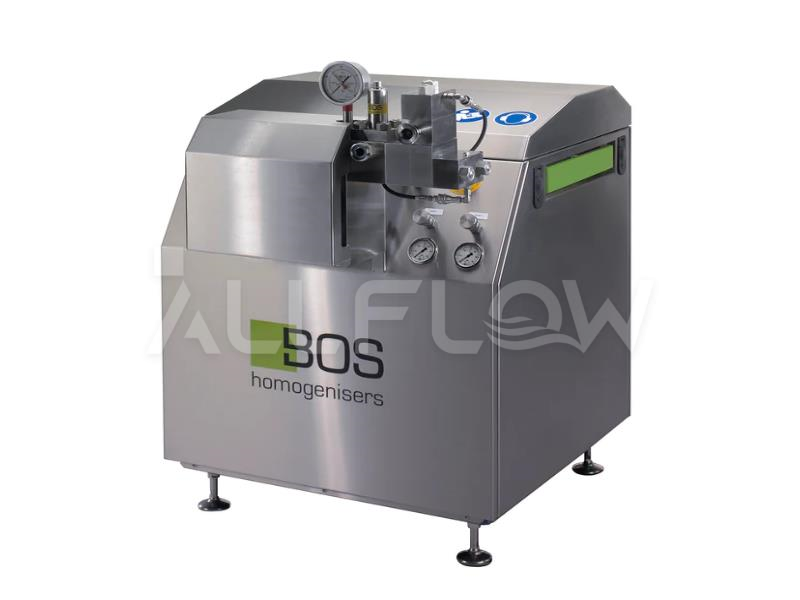

The MG3/MG4 is a high pressure homogeniser that supports pressures up to 600/700 bar and capacities up to 4000/5000 liters per hour.

3 plungers
High-pressure pump or homogeniser
Aseptic available
Pump valves: Ball or Spherical

Product Description

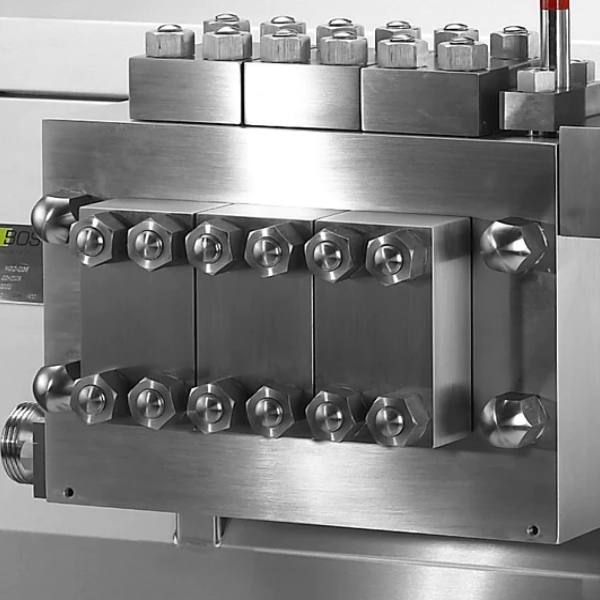

Cylinder block

A single piece precision machined block made out of a high tensile, corrosion resistant, forged stainless steel.

All these pump valve designs have high wear and corrosion resistantpump valves and field replaceable seats, both made out of Rexalloy®™ or optional seats made of Tungsten Carbide. There are many other options available to meet specific product or process requirements.

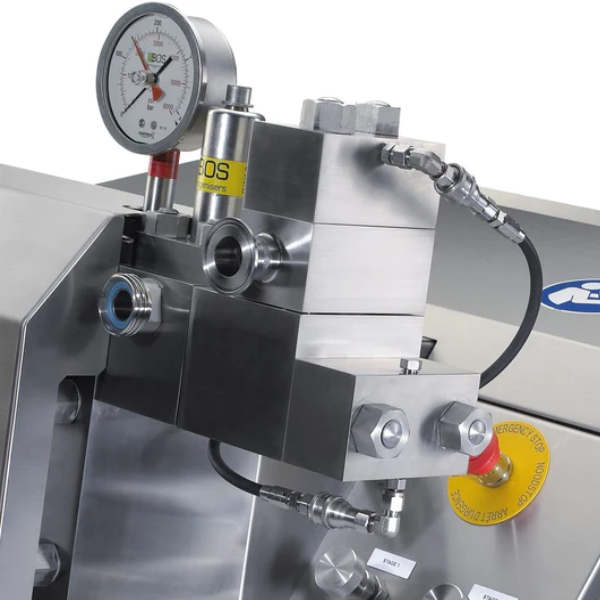

Homogenising Valve

Available in a variety of designs and materials, single or two stage, with the standard flat valve and seat in Rexalloy®™ but also with a serrated surface (LW type) or Knife edge for cell rupture applications.

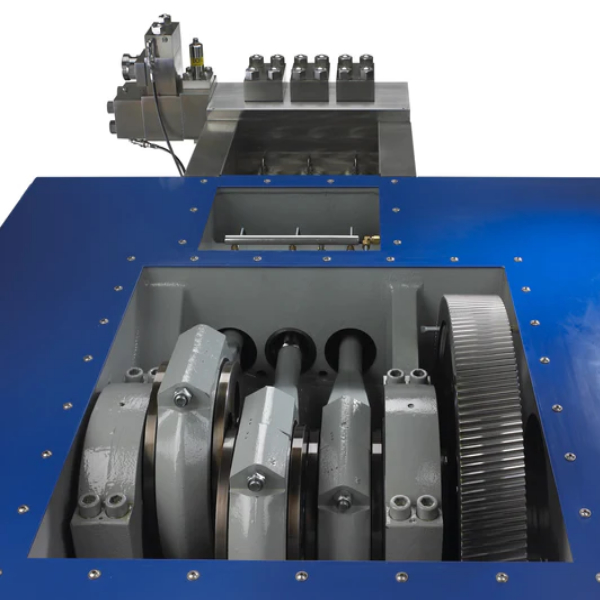

Drive end

The one piece high strength cast iron design with integrated gear reduction provides a quiet running machine with low eccentric shaft speeds. The drive has a dry sump with a separate lubrication oil tank and does not require any cooling water. All bearings are pressure lubricated by an electric driven oil pump allowing capacity variation between 15-100% under full load. Both drive shaft and eccentric shaft have oversized roller bearings. The crossheads are designed with adjustable, self aligning ball joint bearings.

This unique concept offers unbeatable reliability, requires a minimum of maintenance and down time.
